ALP040

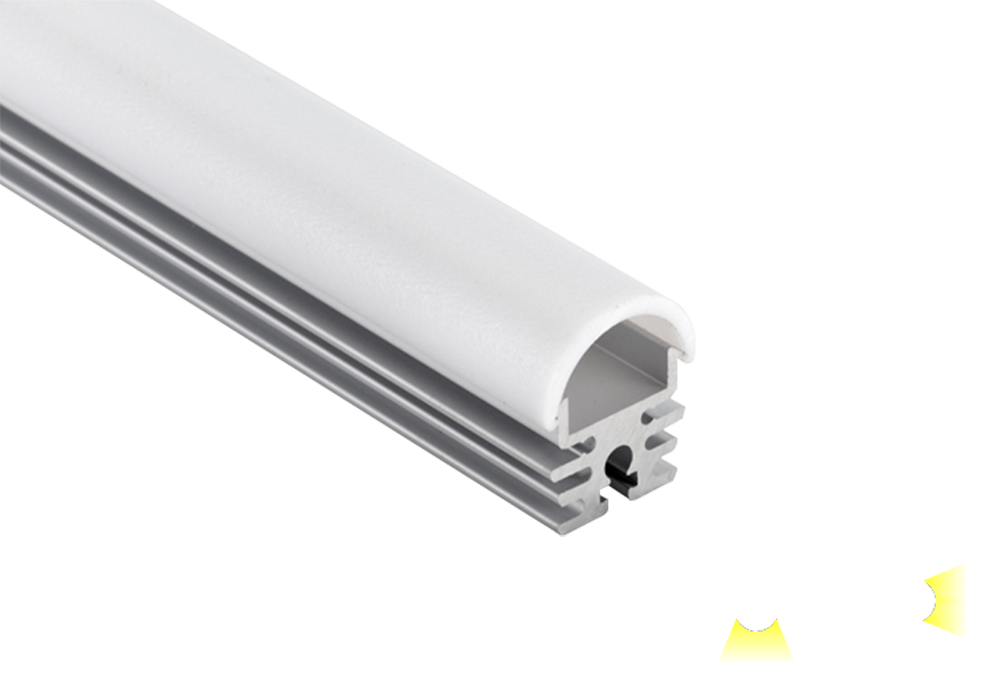

LED Aluminum Profile with half round cover for surface mounting with better heat sink

18mm LED Channel with round diffuser with metal mounting clip for good heat dissipation

Basic parameters

Model:
ALP040
Material:
Extruded Aluminum{6063-T5)
Size:
20.3×23.5mm

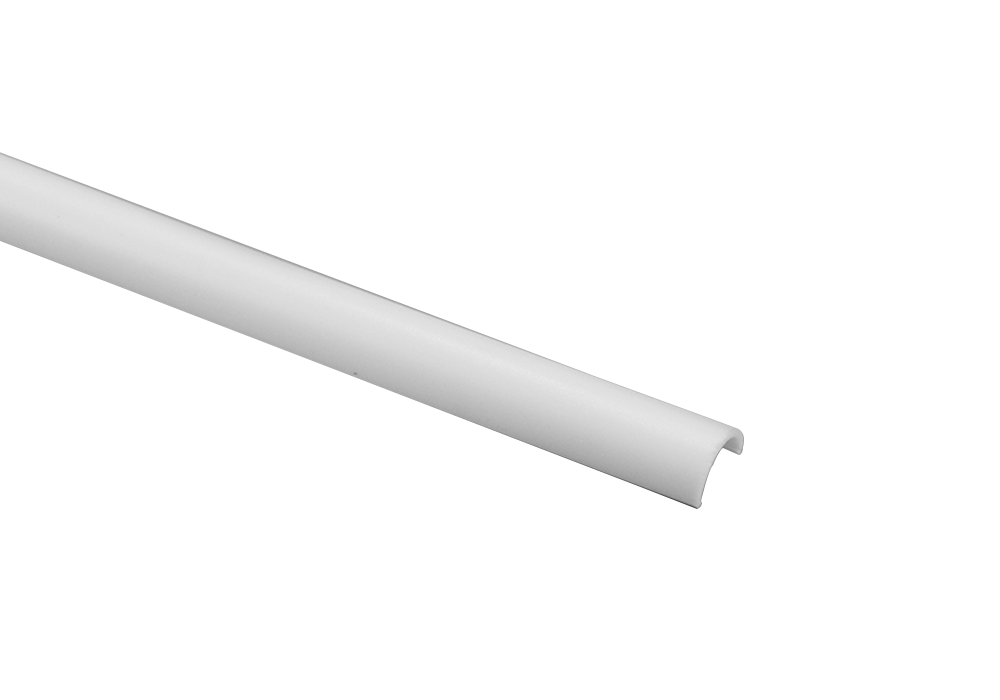

Diffuser:
PMMA opal matte
Installation:
Surface
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 15W/m
Max LED Strip Width: 12mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
