ALP040-60

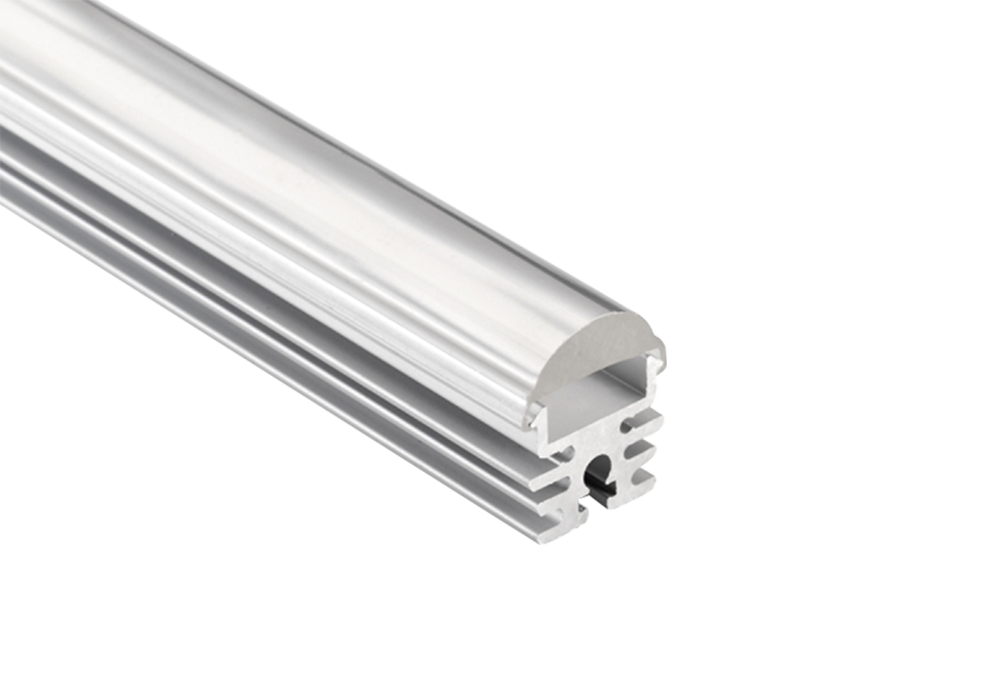

18mm Aluminum LED extrusion with 60° lens for surface mounted with better heat sink

Surface mounting Aluminum Channel with 60° lens in 18mm width for good heat dissipation

Basic parameters

Model:
ALP040-60
Material:
Extruded Aluminum{6063-T5)
Size:
19.3×22.7mm
Diffuser:

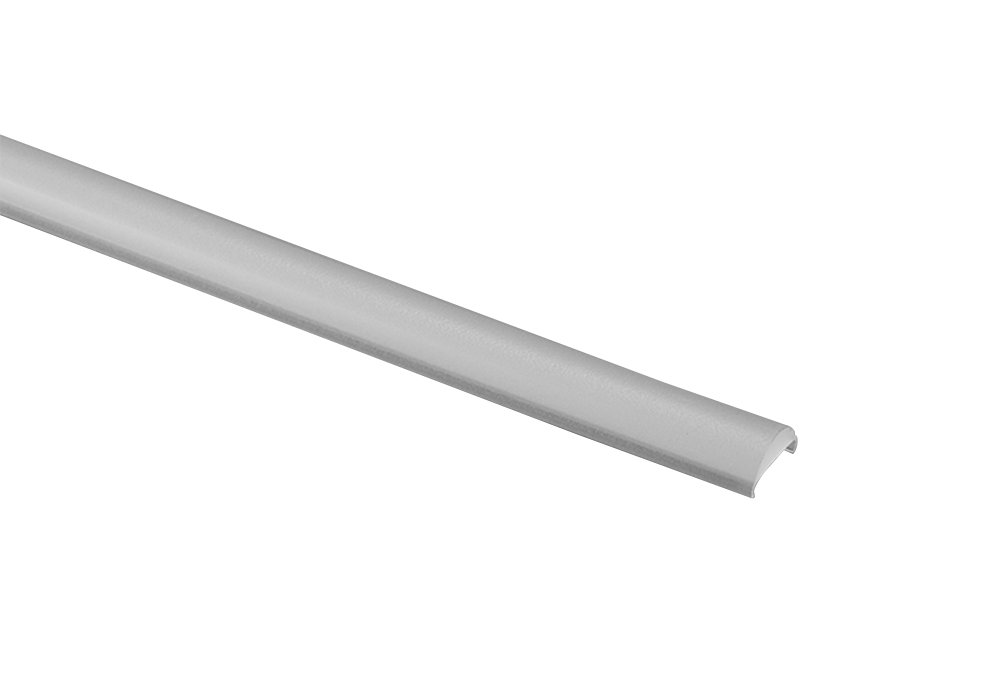

60 degrees lens
Installation:
Surface
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Colour: 2700K/3000K/4000K
Max Power: 15W/m
Max LED Strip Width: 12mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
