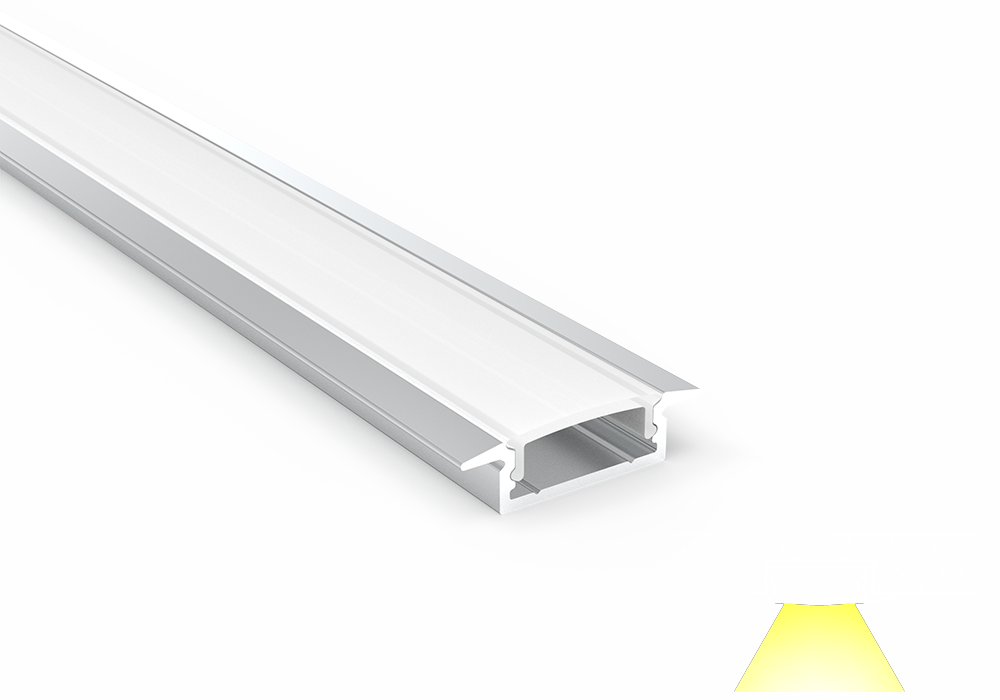

ALP147

LED Extrusion Profile With 7mm Deep With Flange

7MM Deep Recessed LED Light Profiles With Flange

Basic parameters

Model:
ALP147
Material:
Extruded Aluminum{6063-T5)
Size:
18.5×7mm

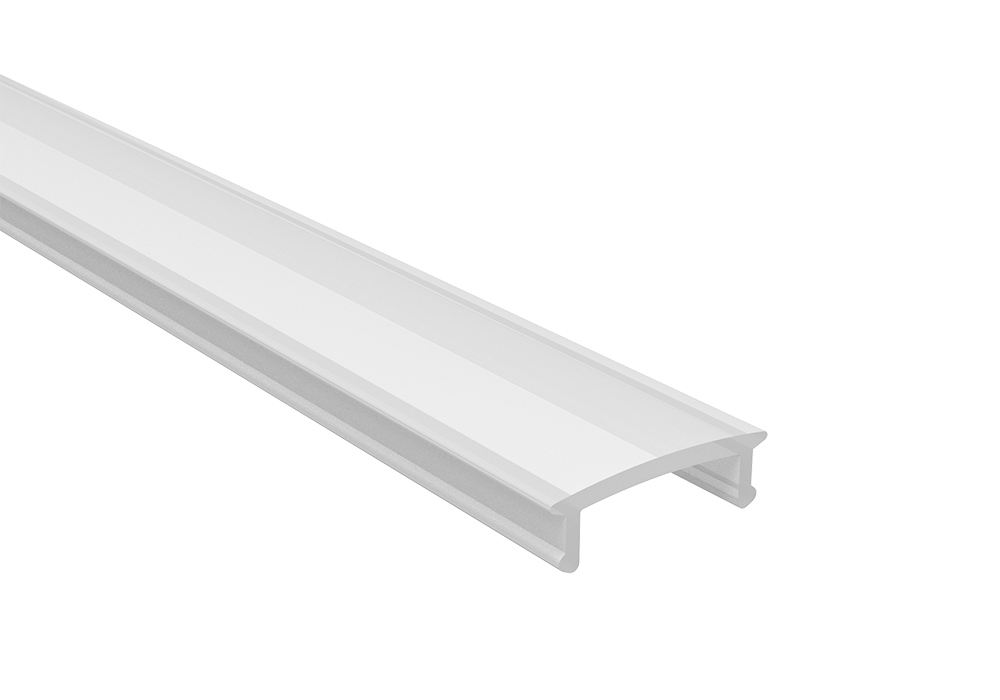

Diffuser:
PC diffused cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Max Power: 15W/m
Max LED Strip Width: 15mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
