ALP149

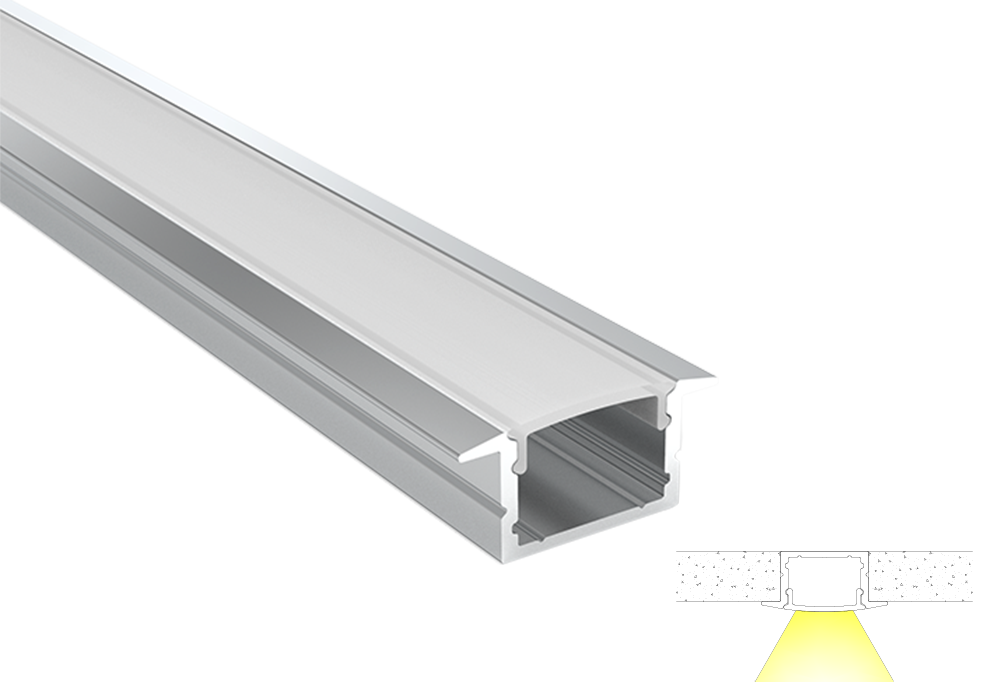

Recessed Light Strip Channel With Flange For Wall Lighting

12mm Deep Recessed Light Strip Channel with flanges

Basic parameters

Model:
ALP149
Material:
Extruded Aluminum{6063-T5)
Size:
18.5×12mm

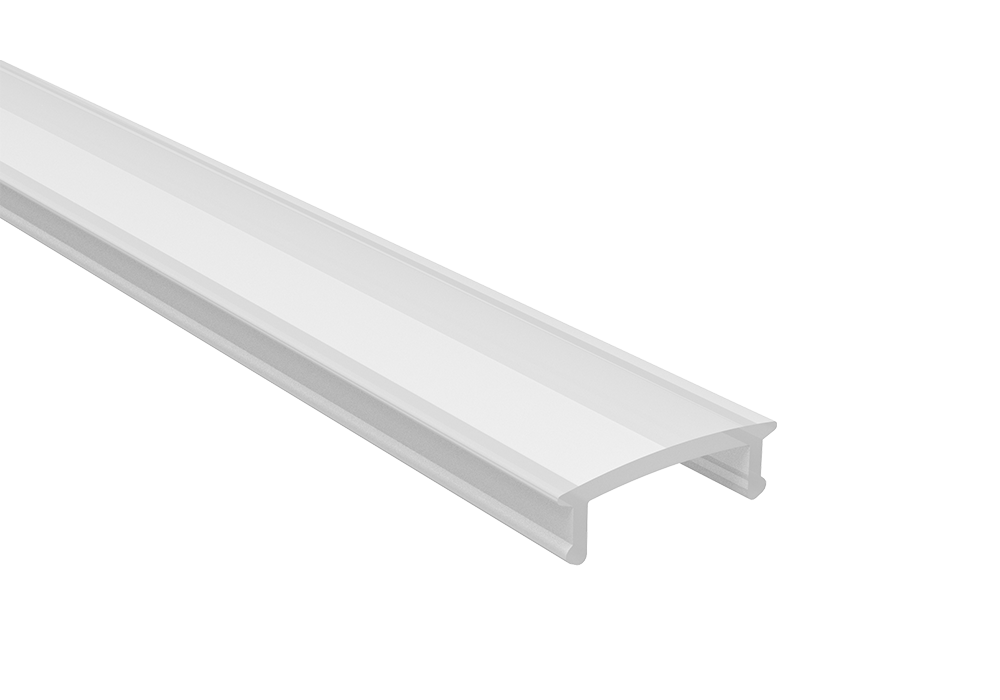

Diffuser:
PC diffused cover
Installation:
Silver / Black anodized , Powder coated white / black or other colors
Finish:
Recessed

Optical Parameter

Max Power: 15W/m
Max LED Strip Width: 15mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
Warranty: 5 Years
