ALP013-R

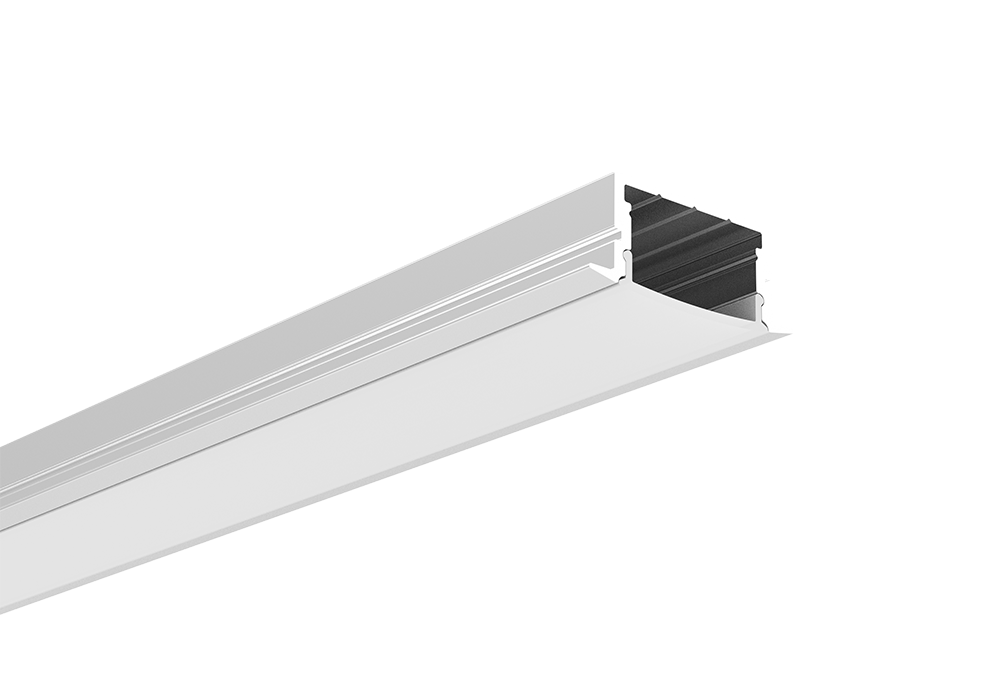

Aluminum LED Profile for 20mm Width LED Strip

Embedded in Wall or Ceiling LED Channel

Basic parameters

Model:
ALP013-R
Material:
Extruded Aluminum{6063-T5)
Size:
30.5×12.8mm
Diffuser:

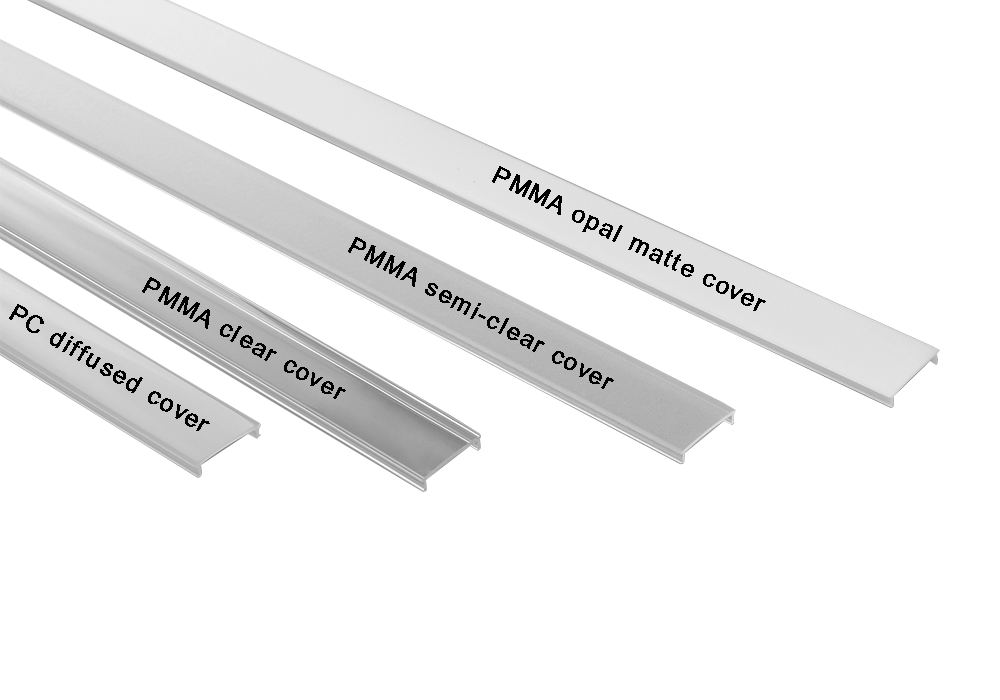

PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover
Installation:
Recessed
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Colour: 2700K/3000K/4000K
Max Power: 20W/m
Max LED Strip Width: 20mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
