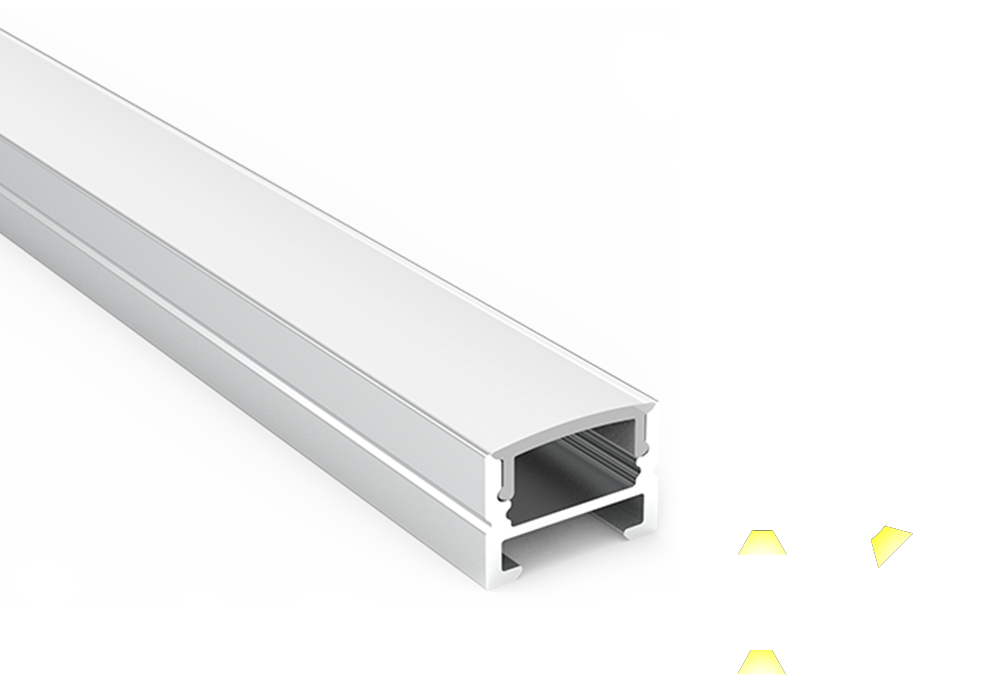

ALP144

Hot Sell Small LED Profile for surface mounting with Adjustable Angle

17mm LED profile for magnetic mounting

Basic parameters

Model:
ALP144
Material:
Extruded Aluminum{6063-T5)
Size:
17.1×11.9mm
Diffuser:

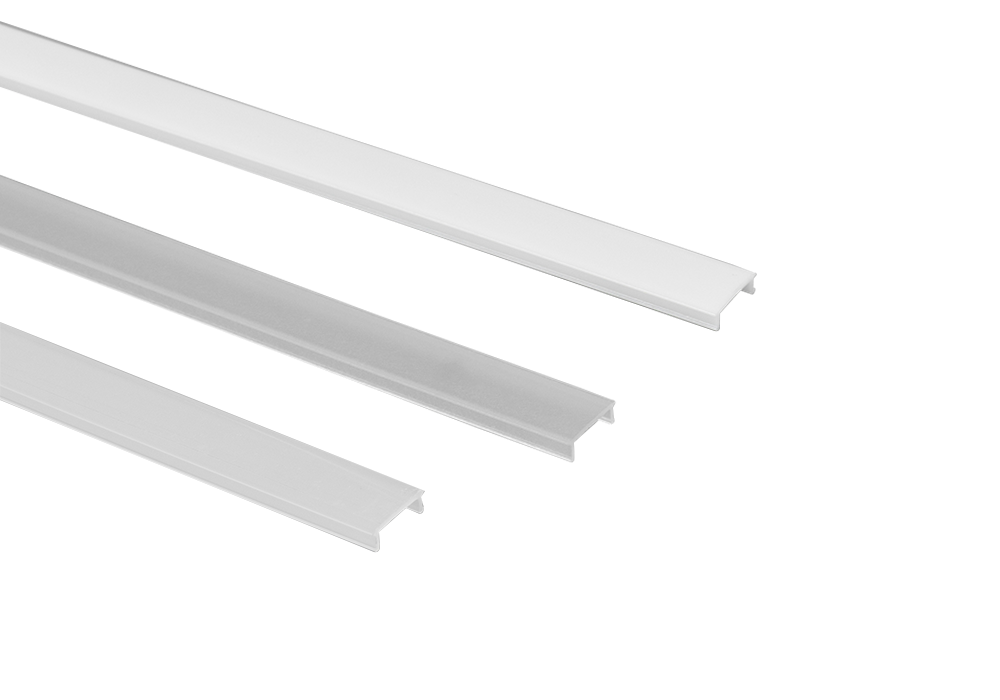

PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover
Installation:
Surface
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Colour: 2700K/3000K/4000K
Max Power: 24W/m
Max LED Strip Width: 12mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
