ALP028

Surface Mounted Linear LED Aluminum Profile with Square Cover

270° Lighting Surface Mounted LED Aluminum Profile

Basic parameters

Model:
ALP028
Material:
Extruded Aluminum{6063-T5)
Size:
20.3×27mm
Diffuser:
PMMA opal matte cover / PMMA semi-clear cover /PC diffused cover
Installation:

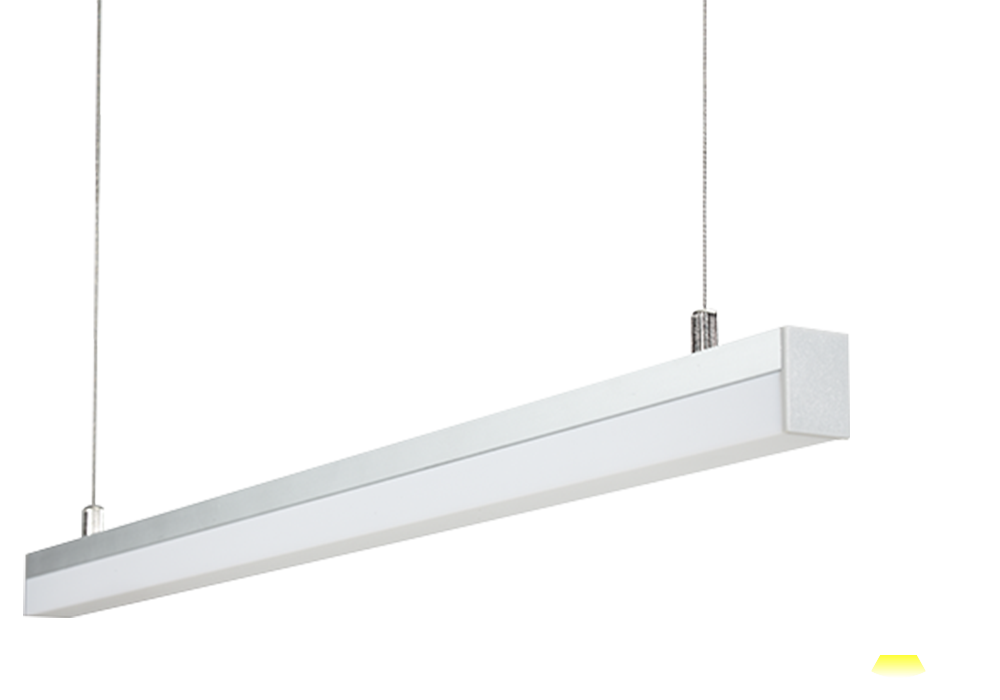

Surface / Pendant
Finish:
Silver / Black anodized , Powder coated white / black or other colors

Optical Parameter

Colour: 2700K/3000K/4000K
Max Power: 20W/m
Max LED Strip Width: 16mm
Beam angle: 100°
Tolerance: 士1%
IP: 20
